BACKIT® Wall Backing

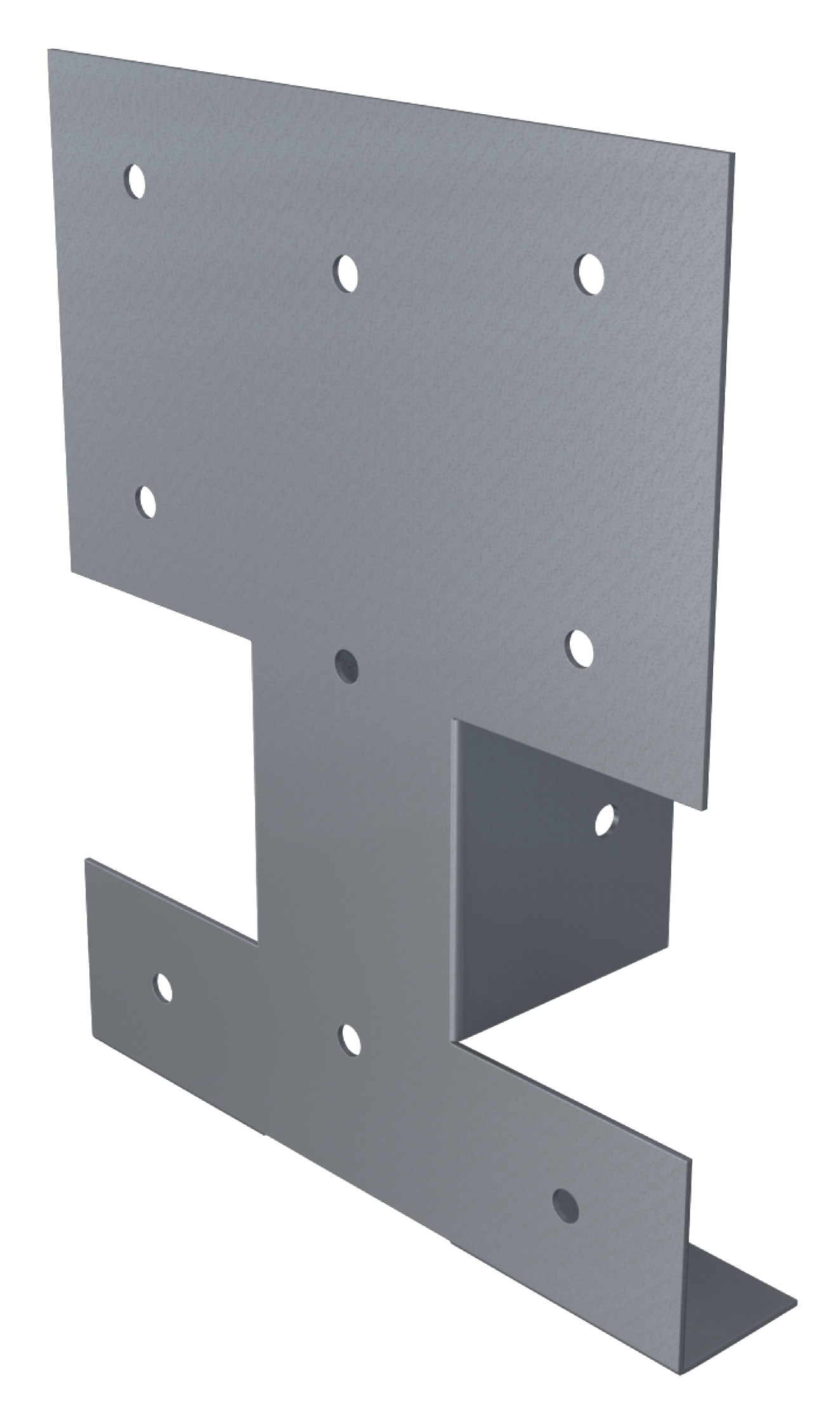

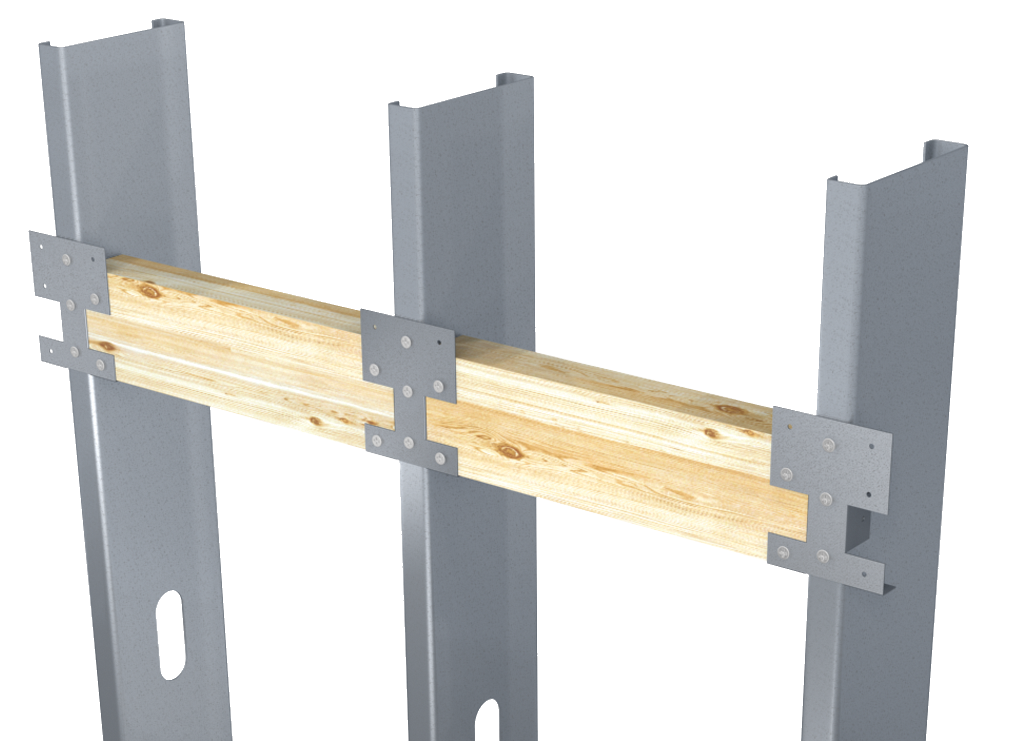

BackIt® provides a solid backing solution to support handrails, wall-mounted shelving, and other equipment. Installation is greatly simplified through a simple screw connection to the stud flange, delivering a flexibility for use in 12”, 16”, and 24” stud spacing. Shelf tabs hold a variety of wood backing sizes and shapes, including 1” x 6”, 2” x 4”, and 2” x 6”, in place during installation. BackIt exceeds code-required allowable load resistance of 250lbs in the vertical and horizontal directions.
ASTM A1003/A1003M Structural Grade 50 (340) Type H, ST50H (ST340H): 50ksi (340MPa) minimum yield strength, 65ksi (450MPa) minimum tensile strength, 43mil minimum thickness (18 gauge, 0.0451” design thickness) with ASTM A653/A653M G60 (Z180) hot dipped galvanized coating.
- Guide holes for stud and wood attachments
- Shelf tabs to rest wood upon during installation
- No pre-determined stud layout
- May be used with multiple sizes of wood
- Resists load in the directions recommended by codes
